Descripción

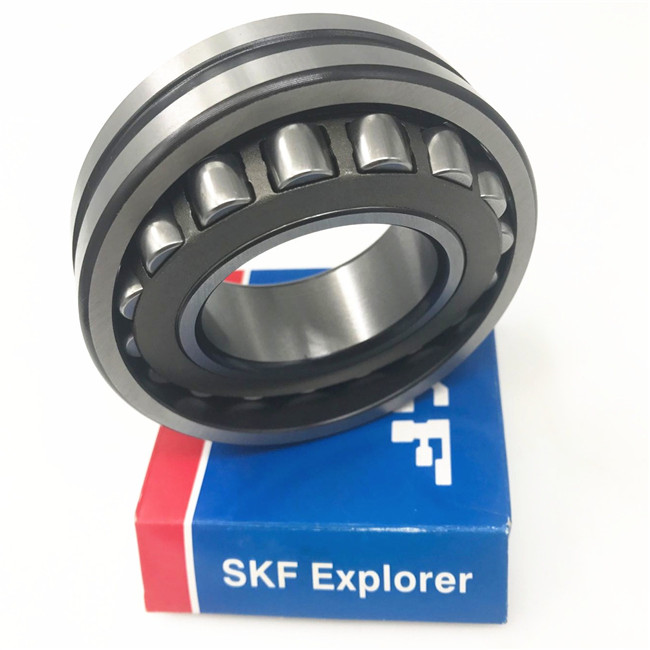

22314 SKF
RULEMAN SKF IMPORTADO
Medidas: 70 x 150 x 51
Descripción del Fabricante:
Product Description This 22314 EK/C3 bearing is a Spherical Roller Bearing with an optimized internal design for increased load capacity, a 1:12 tapered bore, a flangeless inner ring, two stamped steel cages and a greater than normal radial internal clearance. The bearing’s dimensions are 70x150x51. 223 14 E K C3 Extra Heavy, Wide 70mm – Bore Size High Capacity Internal Design Tapered Bore (1:12) Stamped Steel Cage
| 223 | 14 | E | K | C3 | ||||
|---|---|---|---|---|---|---|---|---|
| Extra Heavy, Wide | 70mm – Bore Size | High Capacity Internal Design | Tapered Bore (1:12) | Stamped Steel Cage | Radial Clearance Greater Than Standard |
| Dimensions (mm) | Weight (kg) | Brand | ||
|---|---|---|---|---|
| d | D | W | ||
| 70 | 150 | 51 | 4.55 |  |
| Basic Dynamic Load Rating (kN) | Speed Limitaions(r/min) | Fatigue Load Limit (kN) | ||
|---|---|---|---|---|
| Dynamic | Static | Reference Speed | Limiting Speed | |
| 400 | 430 | 3400 | 4500 | 45 |
